6.1 Hemi Demon Retro-Fitted

An orange A-body sitting on a consignment lot in Dearborn looks period correct until it starts. What is under the hood was designed thirty-five years after the body was stamped, makes about 150 more horsepower than the engine that belongs there, and has become one of the most popular swaps in the Mopar world. Read on for why builders keep reaching for this particular engine instead of something newer.

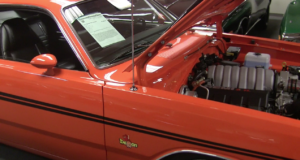

A flash of orange paint catches your eye first, tucked between chrome-heavy classics on a consignment showroom floor in Dearborn. Under that vintage sheet metal, though, something does not match the decade the body was stamped in. The crew filming at the dealership noticed it too, and the low, uneven rumble coming from under the hood gave it away before anyone said a word. This is not the small block that left the factory in this car. Somebody went to considerable trouble to put a very different kind of engine under that skin, and the reasoning behind that decision explains a great deal about how the restomod market actually works.

Something Under That Hood Does Not Match the Decade

The tells are subtle if you are only looking at the outside. The body is period correct, the paint is a plausible factory color, and from ten feet away nothing announces itself. Get closer and the details start to disagree with each other: hoses and wiring that belong to a fuel-injected engine, a coil pack arrangement no early 1970s Chrysler ever used, an air intake routed in a way the original engine bay was never laid out for. Then it starts, and the argument ends. A modern injected V8 does not idle like a carbureted small block, and anybody who has spent time around either can hear the difference across a showroom floor.

⚑ Featured Gear

Start Car Conversations →

← Prev Next →

As an Amazon Associate I earn from qualifying purchases.

The Engine Was Built for a 300C, Not an A-Body

The 6.1-liter HEMI was never designed with an early 1970s Dodge compact in mind. Chrysler introduced it in the 2005 Chrysler 300C SRT8 and then spread it across the Dodge Charger SRT8, the Magnum SRT8, the Jeep Grand Cherokee SRT8, and eventually the 2008 Dodge Challenger SRT8. Factory rated at 425 horsepower and 420 pound-feet of torque, it was the performance engine in Chrysler’s lineup for half a decade, in vehicles that weighed considerably more than the car it is sitting in here.

How Chrysler Found 425 Horsepower in a 5.7

Getting to 425 horsepower from the 5.7-liter HEMI it was based on took real work rather than a chip and an intake. Chrysler bored the 5.7 block out by 3.5 millimeters and reinforced the bulkheads to handle the additional displacement and cylinder pressure. Engineers fitted a higher-lift camshaft, larger intake valves, and higher-flow injectors, and raised the redline so the engine could spin to 6,200 rpm against the 5.7’s 5,400 rpm ceiling. The result was an engine with a genuinely different personality from the truck-and-sedan 5.7, willing to rev in a way Chrysler’s modern V8s generally are not.

What a Dodge Demon Actually Was in 1971

The car it went into has its own history worth knowing. The Dodge Demon of 1971 and 1972 was an A-body compact, essentially Dodge’s version of the Plymouth Duster, sold with everything from a slant six up to the 340 small block. The Demon 340 was the version people wanted, rated at 275 horsepower on the gross scale, and it was one of the better performance bargains of its moment. The name lasted only two model years before Dodge renamed the car the Dart Sport following objections to the Demon badge and its cartoon mascot.

Gross Versus Net Is Why the Swap Is So Tempting

Put those two numbers next to each other and the appeal of the swap becomes obvious. The factory 340 was rated at 275 horsepower gross, a measurement taken without accessories or exhaust, and Chrysler restated the same engine family at 240 horsepower net once the industry switched standards for 1972. The 6.1 is rated at 425 in net terms, as installed, with everything attached. That is not an incremental gain. In a car this light, it is a fundamental change in what the vehicle is, and it comes with modern fuel injection that starts reliably, idles cleanly, and does not need to be nursed through a cold morning.

What the Job Actually Involves

The work involved is not trivial, which is worth stating plainly. A modern HEMI in an A-body needs custom or aftermarket engine mounts and frequently a modified K-member, headers designed for the swap because nothing factory clears the steering, and a complete high-pressure fuel system since the original mechanical pump and low-pressure lines cannot feed injection. The wiring is the part that defeats most first-timers, requiring either a heavily reworked factory harness and ECU or a standalone engine management system. Then the transmission has to be resolved, either an adapted modern automatic or a manual conversion with a suitable bellhousing.

Why the 6.1 and Not a Hellcat

There is a reason builders keep choosing the 6.1 rather than something newer. Chrysler retired it in 2010, replaced by the naturally aspirated 6.4-liter 392 and later joined by the supercharged 6.2 Hellcat, which means the 6.1 has now spent well over a decade filtering into salvage yards and the used market at prices the newer engines do not come close to matching. It is also physically simpler than a supercharged engine, packages more easily under a low hood without an intercooler system to route, and produces enough power that the rest of the car becomes the limiting factor long before the engine does.

The Engine Is Rarely the Weak Link Afterward

That last point deserves emphasis, because it is where these builds go wrong. An A-body chassis designed around 240 net horsepower and drum brakes is not ready for 425 without attention. A car like this one needs a disc brake conversion at minimum, a rear axle that can survive the torque, subframe connectors to keep the unibody from flexing, and suspension and tire choices that let any of the power reach the ground. Builders who spend the entire budget on the engine end up with a car that is fast in a straight line for about four seconds and alarming after that.

One Last Note on That Badge

For a consignment operation like Gateway Classic Cars, which buys and resells collector vehicles out of showrooms across the country, a car like this occupies a specific and useful niche. It looks period correct on a cruise-in field but can hold highway speed without drama, which a numbers-matching original genuinely struggles to do. One clarification is worth making, since the name causes constant confusion in listings: this is not related to the Dodge Challenger SRT Demon, a limited-production drag car from 2018 that shares nothing with this vehicle except four letters on a badge.

Watch the clip above. Share your thoughts in the comments below.
