The Badge That Meant Business: 1966 Mustang K-Code 289

By its second model year the Mustang was the fastest-selling new nameplate in American automotive history, and tucked into the order form was a small fender badge most buyers walked right past. Ford hand-selected the blocks for this engine and rejected any with the slightest flaw, a level of quality control almost nobody bothered with on a volume car. Only 5,469 were built for 1966. Read on for the badge that still means something six decades later.

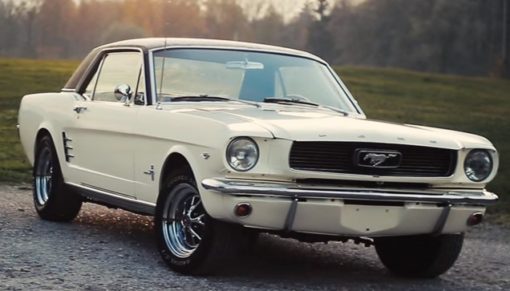

Classic white 1966 Ford Mustang parked outdoors during sunset.

By its second model year Ford’s pony car had already become the fastest-selling new nameplate in American automotive history, and the company was in no mood to coast on it. Tucked into the order form was a single small badge that most casual buyers walked straight past on their way to picking a paint color, a fender emblem that told anyone who knew what to look for that this particular Mustang was not like the others on the lot. Ford hand-picked the engine blocks for this option and rejected any that showed the slightest imperfection, a level of scrutiny almost nobody was applying to a mass-production car in the mid-1960s. That is why a small piece of chrome still moves the price six decades later.

The Badge That Separated the Real Ones

Cars fitted with the K-code 289 Hi-Po engine wore a small fender badge reading HIGH PERFORMANCE 289, and it was the giveaway for an engine assembled with real intent. Ford rated it at 271 horsepower at 6,000 rpm, with 312 lb-ft of torque, from a 10.5 to one compression ratio, a solid-lifter camshaft, and a four-barrel Autolite carburetor. The horsepower peak is the number that tells the story. A 6,000-rpm rating on a 1966 production engine meant Ford had built this thing to be revved, deliberately and repeatedly, in a market where most V8s made their power in the middle of the range and got unhappy above it.

⚑ Featured Gear

Start Car Conversations →

As an Amazon Associate I earn from qualifying purchases.

What Ford Actually Changed Inside the Engine

The changes went well past a camshaft and a carburetor. The K-code received a solid-lifter valvetrain with screw-in rocker studs and a stronger valve spring package to handle the revs, a dual-point distributor, a larger harmonic balancer, heavier-duty connecting rod bolts, larger crankshaft and rod bearings, low-restriction cast exhaust manifolds, and chrome valve covers to mark it out under the hood. Ford also fitted a heavier-duty clutch and driveline behind it. Taken as a list, these are the modifications a knowledgeable owner would have made themselves, done at the factory with matched parts, which is exactly why the engine has such a good reputation for durability when it has been maintained properly.

The Quality Control Nobody Else Was Doing

The block selection process is the part that still surprises people. Ford dye-checked standard 289 castings to identify any with flaws before they ever received the K-code treatment, weeding out anything with the slightest imperfection rather than simply pulling blocks off the line at random. That is a genuinely unusual level of quality control for a volume manufacturer in this period, and it added real cost to every engine built. It also explains why so many K-code engines have survived decades of hard use. Ford was not just tuning a standard 289 harder, it was starting with better raw material and then building it to a higher standard.

The Options You Could Not Have

There were real costs to choosing it, and they were not only financial. You could not order a K-code Mustang with power steering or air conditioning, full stop. Ford treated the Hi-Po as a driver’s engine and made no allowance for anyone who wanted to soften the experience, which is a striking product decision for a car that was selling in the hundreds of thousands to a mainstream audience. Combined with the solid lifters requiring periodic valve lash adjustment and the engine’s preference for revs over low-end torque, the K-code was a deliberately demanding choice in a lineup otherwise engineered around accessibility.

The GT Package That Usually Came With It

The K-code typically arrived alongside the GT Equipment Group, which turned the car into a coherent package rather than an engine in a standard body. The GT group added front disc brakes, a considerably quicker-ratio steering box than the standard manual setup, uprated suspension, fog lamps in the grille, GT badging and rocker stripes, and a true dual exhaust system exiting through cutouts in the rear valance. That last detail is the one people recognize at shows. Together with the Hi-Po engine, it produced a car that stopped and turned in a way the average 1966 Mustang simply did not, which matters more than the horsepower figure on any road that is not straight.

Rarer Than the Sales Numbers Suggest

The production numbers are smaller than the Mustang’s overall success suggests. Ford built 5,469 K-code Mustangs for 1966, down meaningfully from the 7,273 built the year before, and output then fell off a cliff to just 489 for 1967 as the 390 big-block took over as the performance answer. That works out to barely over 13,000 K-code cars across the entire run, set against nearly 1.7 million Mustangs sold through 1967, and against a 1966 model year in which Ford moved more than 600,000 Mustangs on its own. Fewer than one Mustang in a hundred from that peak year carried the badge.

The Same Engine Shelby Built the GT350 On

The engine’s other claim is that Carroll Shelby chose it as the foundation for the GT350. Shelby started with the K-code and added a high-rise aluminum intake manifold, a large Holley four-barrel, tubular exhaust headers, and a revised oil pan, taking output to a rated 306 horsepower. Everything that made the GT350 credible as a production-based race car started with the Hi-Po block and its factory internals, which is about as strong an endorsement of the engine’s basic engineering as exists. When people describe the K-code as the best small-block Ford of the era, the GT350 connection is usually the argument they reach for.

Verifying a Real K-Code Today

Because the value gap between a K-code and an ordinary 289 car is enormous, verification is not optional. The fifth character of the VIN should be a K, and that alone is the starting point rather than the conclusion, since VIN tampering and re-stamped blocks both exist. Confirm the block casting number and date codes, look for the correct heads, the solid-lifter valvetrain, the dual-point distributor, and the absence of power steering and air conditioning provisions, and get a Marti Report where the year allows it. Structurally, check the torque boxes, shock towers, floors, cowl, and rear frame rails as you would with any first-generation car. A genuine, documented K-code remains one of the more overlooked rarities in the whole Mustang story: small badge, very large history. Share your thoughts in the comments below.
