Z/28 Beautiful Front!

Chevrolet rated the 1969 Camaro Z/28 at 290 horsepower, a figure that racers who put one on a dyno treated as an inside joke. The car existed to satisfy a racing rulebook rather than a sales brochure, and its 302-cubic-inch V8 was engineered backward from a displacement cap. That understatement explains more about Chevrolet’s ambitions than the sheet metal does. Read on for what was really under the hood.

On paper the 1969 Chevrolet Camaro Z/28 was rated at 290 horsepower, a modest enough figure that it slotted the car well below the big-block options in Chevrolet’s own showroom. Among racers who actually put one on a dynamometer, that number became something of a standing joke. Chevrolet never built the Z/28 for the average buyer; it existed to satisfy a racing rulebook, and the street version inherited every bit of that intent. A beautiful factory front end and a howling small-block concealed a car that was engineered backward from a loophole rather than forward from a marketing brief. The question worth asking is how far off that rating really was, and why Chevrolet bothered.

⚑ Featured Gear

Start Car Conversations →

As an Amazon Associate I earn from qualifying purchases.

A 302 Built to Fit Under 305

Chevrolet built the Z/28 to homologate an engine for SCCA Trans-Am competition, a series that capped displacement at 305 cubic inches. Engineers reached that ceiling from below with an unusual bit of parts-bin arithmetic: take the 4.00-inch bore of the 327 and combine it with the 3.00-inch stroke of the 283, and the result is a 302-cubic-inch V8 sitting just under the limit. The short stroke was not a compromise forced by the rules; it was the entire reason the engine behaved the way it did.

Why the Short Stroke Made It Scream

That geometry is what made the 302 rev. A short stroke means lower piston speed at any given engine speed, which in turn means the engine can be spun harder before the reciprocating assembly starts protesting. Chevrolet paired it with a solid-lifter camshaft and a 780-cfm four-barrel carburetor, and offered the car exclusively with a four-speed manual transmission. There was no automatic option, no six-cylinder trim level, and no attempt to soften the package for buyers who might have wanted a comfortable cruiser.

290 on Paper, Closer to 400 in Reality

The factory rating was 290 horsepower at 5,800 rpm with 290 lb-ft of torque, and period dynamometer testing routinely reported real output far closer to 400. Underrating served several purposes at once. It kept the car inside insurance classifications that would otherwise have priced it out of reach for the young buyers it was aimed at, it satisfied corporate policies about advertised output, and it gave Z/28 owners the considerable pleasure of surprising people at stoplights. It was a marketing decision disguised as a specification.

The Trans-Am Titles That Justified It All

The racing program the whole exercise existed to support delivered exactly what Chevrolet wanted. Roger Penske’s team, with Mark Donohue driving, took the Trans-Am championship in both 1968 and 1969, which meant the street Z/28 was not merely inspired by a race car but was directly and demonstrably related to a winning one. That connection is the reason the badge still carries weight, and it is a far stronger claim than most performance packages of the era could make.

From 7,199 Cars to 20,302 in One Year

Buyers responded once word got around. Chevrolet sold 7,199 Z/28s in 1968, its first full model year, then nearly tripled that figure to 20,302 units in 1969. That growth is remarkable for a car with a deliberately narrow appeal, no automatic transmission, and an engine that was actively unpleasant below 3,000 rpm. It suggests that a substantial number of buyers understood exactly what they were purchasing, and that the underrated horsepower figure had become an open secret rather than an effective disguise.

Why the 1969 Nose Photographs So Well

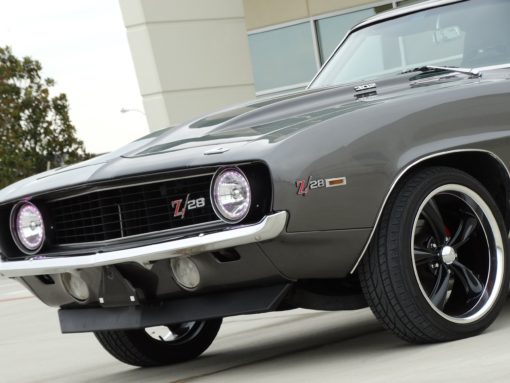

The 1969 front end specifically is why photographs of this car keep circulating. The 1969 restyle gave the first-generation Camaro deeper body creases, a wider grille opening set into a more aggressive front fascia, and headlamp surrounds that made the whole nose look lower and broader than the 1967 and 1968 cars. It is the sharpest-looking year of the generation by most accounts, and it arrived as the final one before the dramatically different second-generation car took over.

Cowl Induction, JL8 Discs, and a Cross-Ram

The option list is where Z/28 buyers separated themselves further. Cowl induction hoods fed cooler outside air from the base of the windshield. The JL8 four-wheel disc brake package, produced in very small numbers, is among the most valuable options a first-generation Camaro can carry today. And Chevrolet made a cross-ram dual-quad intake setup available over the counter through its dealer parts network, a piece designed for competition that a determined street buyer could nonetheless obtain.

Engineered for a Rulebook, Not a Focus Group

All of it explains why a clean shot of a 1969 Z/28 front end still stops people mid-scroll. The appeal is not just proportion and paint, though the car has plenty of both. It is the knowledge of what Chevrolet was concealing beneath a deliberately modest number: a short-stroke, high-winding engine built to a racing regulation, sold to the public with a straight face and a rating nobody in the know believed. Cars engineered to satisfy a rulebook rather than a focus group tend to age extremely well, and this one has aged better than most.

What One Is Worth Now

The collector market has spent decades sorting out what all of this is worth, and the answer depends almost entirely on documentation. A first-generation Z/28 with verifiable build paperwork, a matching-numbers 302, and its original four-speed sits at the top of the first-generation Camaro hierarchy, behind only the rare big-block and dealer-modified cars. A car with the right badges but no documentation sits considerably lower, because the Z/28 is among the most frequently cloned muscle cars in existence and buyers at this level have learned to be suspicious. Rare factory options move the number further still, with the JL8 four-wheel disc brake package standing out as one of the few boxes that can meaningfully change a car’s valuation on its own. For anyone shopping, the practical lesson is unchanged from thirty years ago: buy the paperwork first and the sheet metal second. It is also worth remembering that the 302 itself is a comparatively fragile and expensive engine to rebuild correctly, since the solid-lifter valvetrain and high-revving short-stroke assembly demand machine work that a routine small-block rebuild does not. A car advertised as running and driving is not the same as a car that has been properly sorted, and the difference between those two conditions can be measured in five figures.
